HZBOY E1-2D4S Industrial Radio Remote Control

HZBOY E1-2D4S Industrial Radio Remote Control

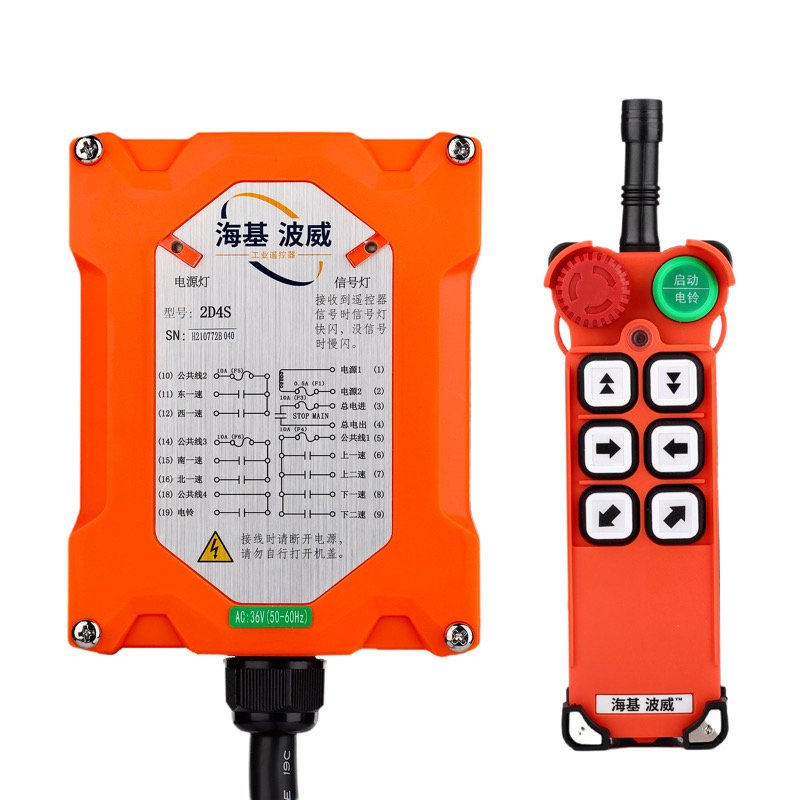

The HZBOY E1-2D4S is a mixed-speed industrial wireless control system designed for equipment that needs two dual-speed functions and four single-speed functions. This combination lets operators use controlled two-stage motion where speed selection matters while keeping auxiliary commands simple.

Control configuration

• 2 dual-speed functions: suitable for motions that require low/high or first/second-stage control.
• 4 single-speed functions: suitable for auxiliary movements or on/off commands.
• Configurable receiver logic: interlocks, momentary outputs and button assignments can be matched to the control circuit.
• Industrial safety design: emergency-stop and controlled start logic support safer daily operation when correctly integrated into the machine.

Typical applications

E1-2D4S can be configured for overhead cranes, gantry cranes, electric hoists, winches, lifting platforms, transfer carts and other machines that combine variable-speed and fixed-speed functions.

How to select the correct version

Please provide the equipment control voltage, motor or inverter control method, required motions, operating frequency and wiring diagram. HZBOY will verify the receiver voltage and relay logic before production.

OEM/ODM support

Custom button symbols, nameplates, output logic, frequency, receiver voltage and packaging are available for distributors, equipment manufacturers and system integrators.

Frequently asked questions

What does 2D4S mean?
It indicates two dual-speed control functions and four single-speed control functions.

Can it control a variable-frequency drive?
Possible configurations depend on the drive input logic and receiver outputs. Send the wiring diagram so our engineers can confirm the correct solution.

Can I order a replacement transmitter only?
Yes, after the coding system, frequency and receiver compatibility have been verified.
